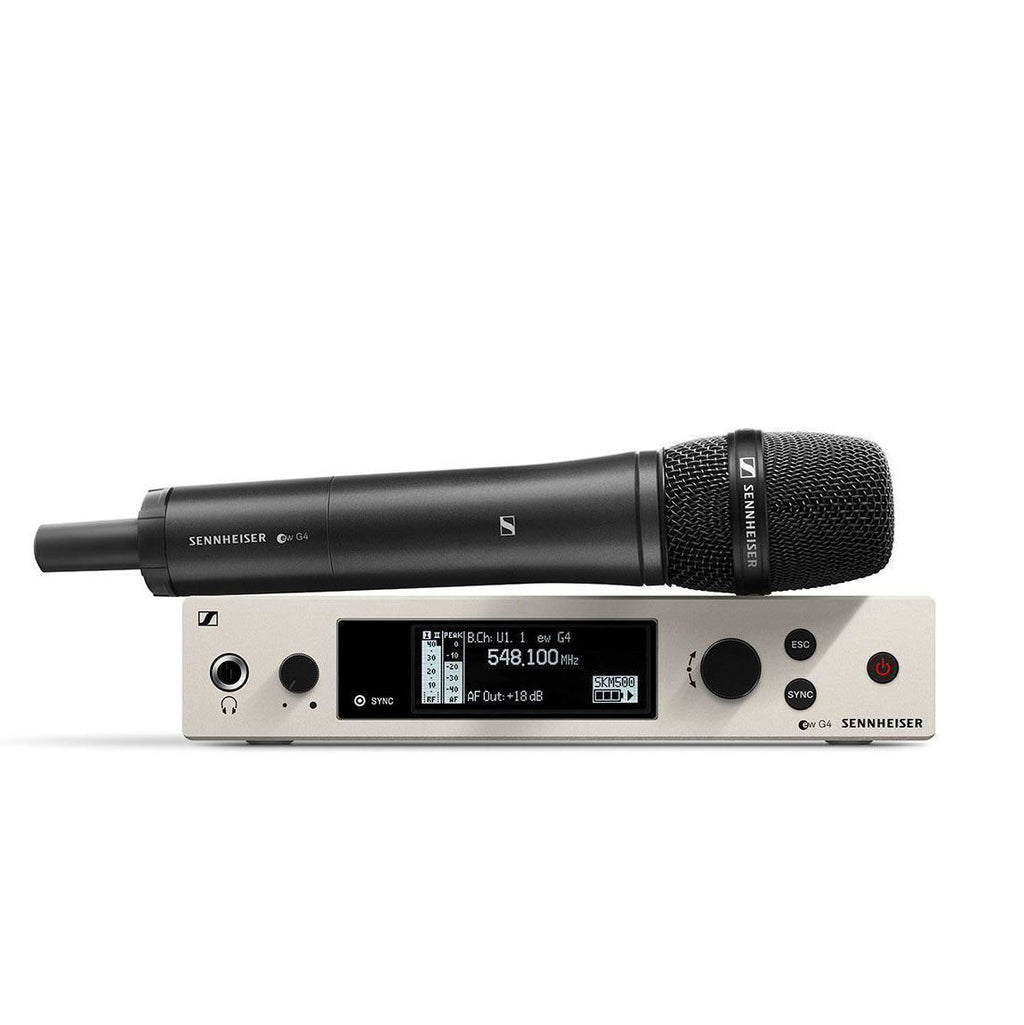

The Sennheiser Evolution G4 500 Series is the professional choice in wireless systems and is designed to perform under the demands of world-class stages and situations.
The flagship of the Evolution Series - G4 500 Series Wireless
The pro‘s choice. Renowned sound engineers rely on EW 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
The pinnacle of the Evolution series, available with Sennheiser’s renowned e 900 capsules - e935, e945, and e965 on a lightweight black aluminum handheld transmitter, ready to take the world’s biggest live stages.
Features
What's in the box?
Specifications

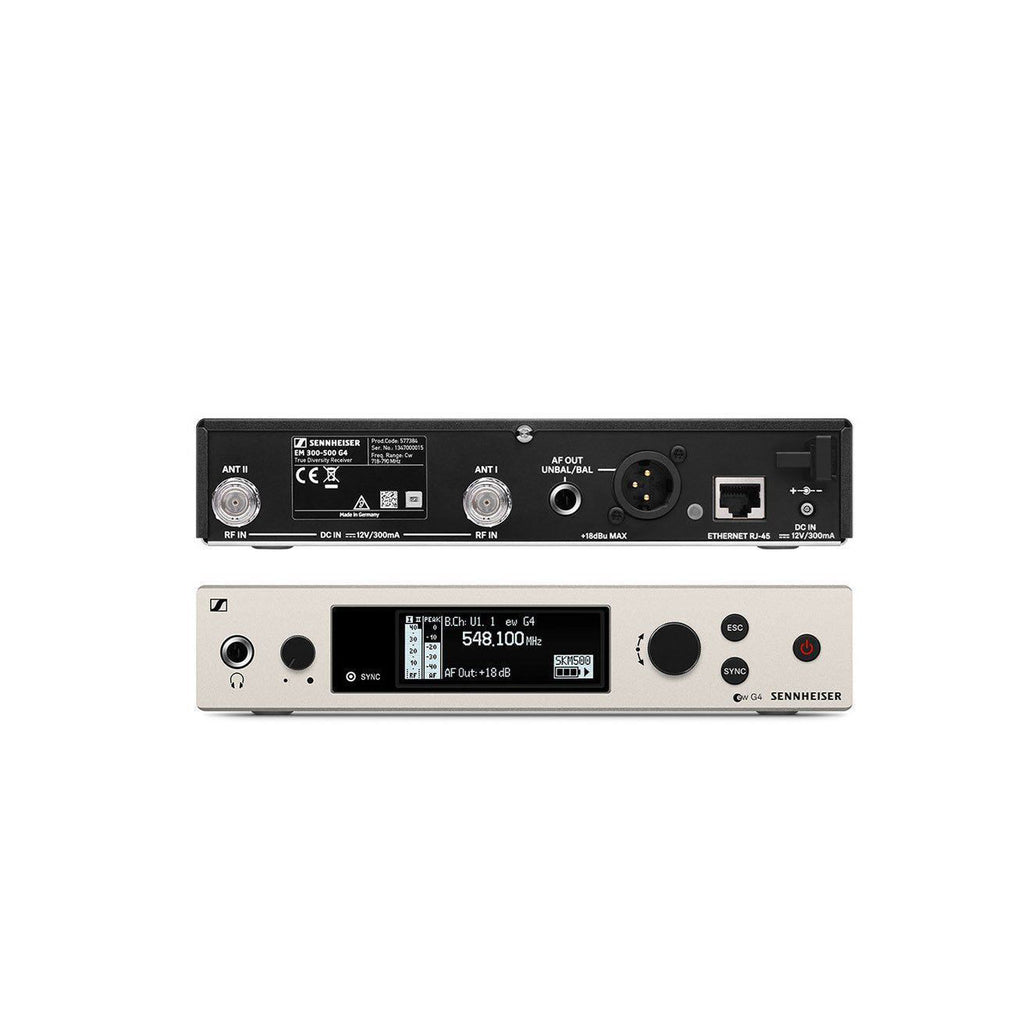

| Component | EM 300-500 G4 Wireless Receiver |
| Frequency range | Gw: 558 - 626 MHz |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Compander | Sennheiser HDX |
| THD total harmonic distortion | 0.9 % |
| Weight | Approx. 980 g |
| Audio output | 6.3 mm jack socket (unbalanced): +12 dBu |
| XLR socket (balanced): +18 dBu | |
| Signal-to-noise ratio | 115 dBA |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Modulation | Wideband FM |
| Power supply | 12 V DC |
| Antenna connector | 2 BNC sockets |
| Current consumption | 350 mA |
| Adjacent channel rejection | Typically 75 dB |
| Intermodulation attenuation | Typically 70 dB |
| Receiving frequency | Max. 3520 receiving frequencies |
| adjustable in 25 kHz steps | |
| 20 frequency banks each with up to 32 factory-preset channels | |
| no intermodulation | |
| 6 frequency banks with up to 32 programmable channels | |
| RF sensitivity | < 2.5 μV for 52 dBA eff S/N |
| Squelch | 5 to 25 dBμV in steps of 2 dB |
| Equalizer | Preset 1: Flat |
| Preset 2: Low Cut (-3 dB at 180 Hz) | |
| Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz) | |
| Preset 4: High Boost (+6 dB at 10 kHz) | |
| Temperature Range | -10 °C to +55 °C |
| Receiver Principle | True diversity |
| Blocking | 75 dB |

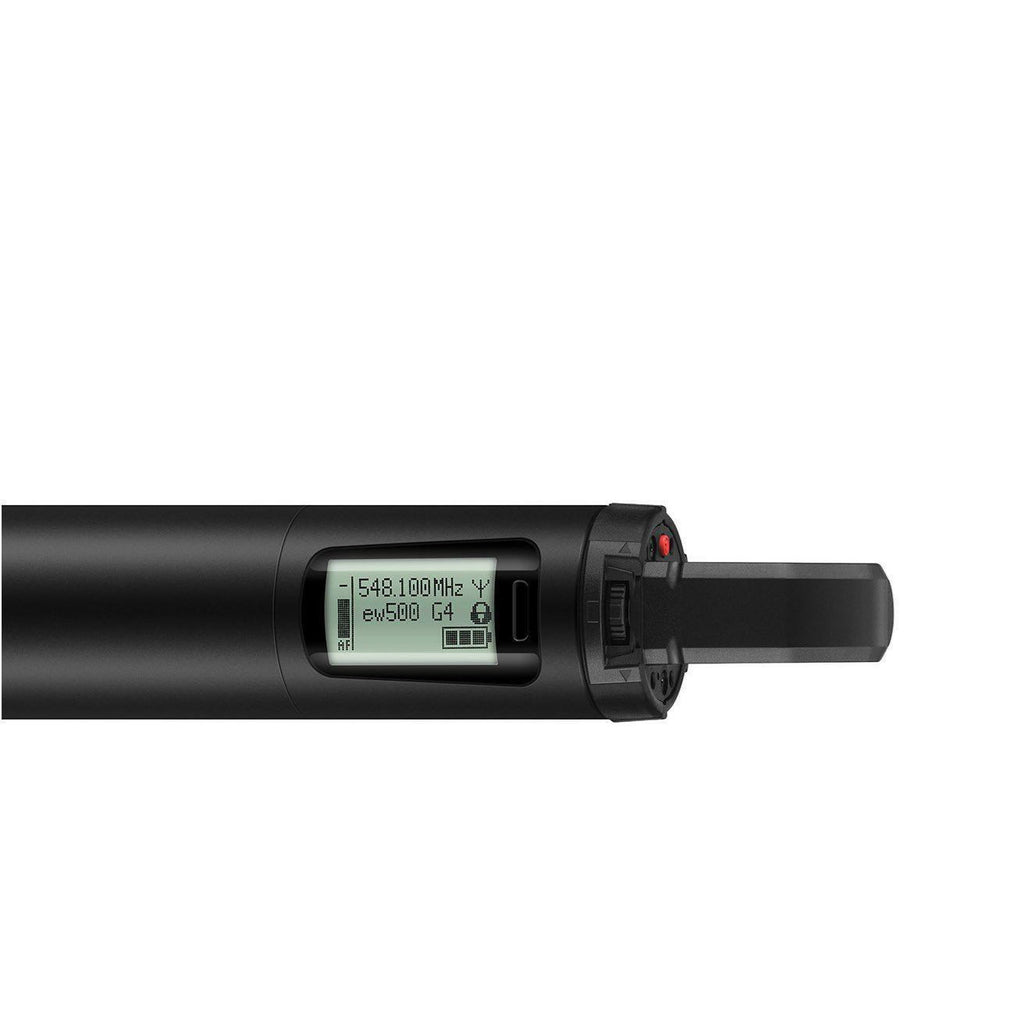

| Component | SKM 500 G4 Handheld Wireless Transmitter |
| Dimensionns | Approx. Ø 50 x 265 mm |
| Compander | Sennheiser HDX |
| THD total harmonic distortion | 0.9 % |
| Weight | (incl. batteries) approx. 450 g |
| Signal-to-noise ratio | 115 dBA |
| RF output power (switchable) | Low: typ. 10 mW |
| Standard: typ. 30 mW | |
| High: typ. 50 mW | |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 3520 frequencies |
| adjustable in 25 kHz steps | |
| 20 frequency banks each with up to 32 factory-preset channels | |
| no intermodulation | |
| 6 frequency banks with up to 32 programmable channels | |
| AF frequency response | 80 – 18000 Hz |
| Temperature Range | -10 °C to +55 °C |
| Frequency stability | ±15 ppm |
| Component | MMK 965-1 |
| Frequency response | 40 to 20 000 Hz |
| Max. sound pressure level | 144 dB |
| Transducer principle | externally polarized dual diaphragm condenser microphone |
| Weight | 162 g |
| Diameter of diaphragm | 2.54 cm (1") |
| Pick-up pattern | cardioid/supercardioid – switchable |
| Sensitivity in free field no load (1kHz) | 7.0 mV/Pa |
| Equivalent noise level | 18 dB Dynamic range 126 dB(A) |
